S.E.T Virtual Trainer
Model 18002VT
This ATech software is a low cost Complement/Alternative to the GM S.E.T. project board. The program provides a virtual simulation of the GM S.E.T. Trainer and the instructional resources to perform the experiments from the GM “Electrical/Electronics” Stage 1, Stage 2 and Stage 3 courses.
Features:
- Experiment circuit illustrated in schematic
- Operational schematic ties components to symbols

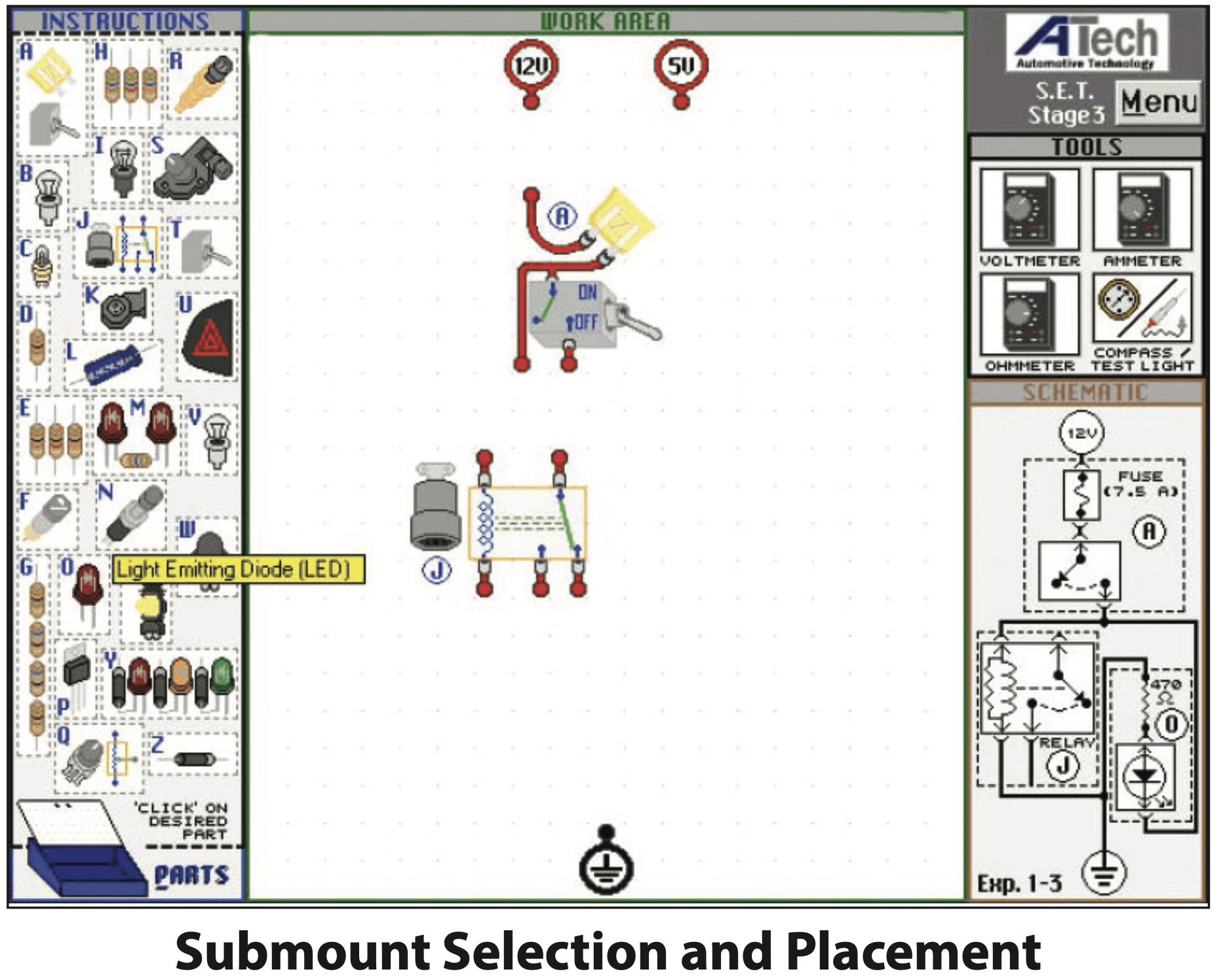

- Sub-mount/component interactive placement by selecting and dragging to position
- Software checks for accurate sub-mount/component selection

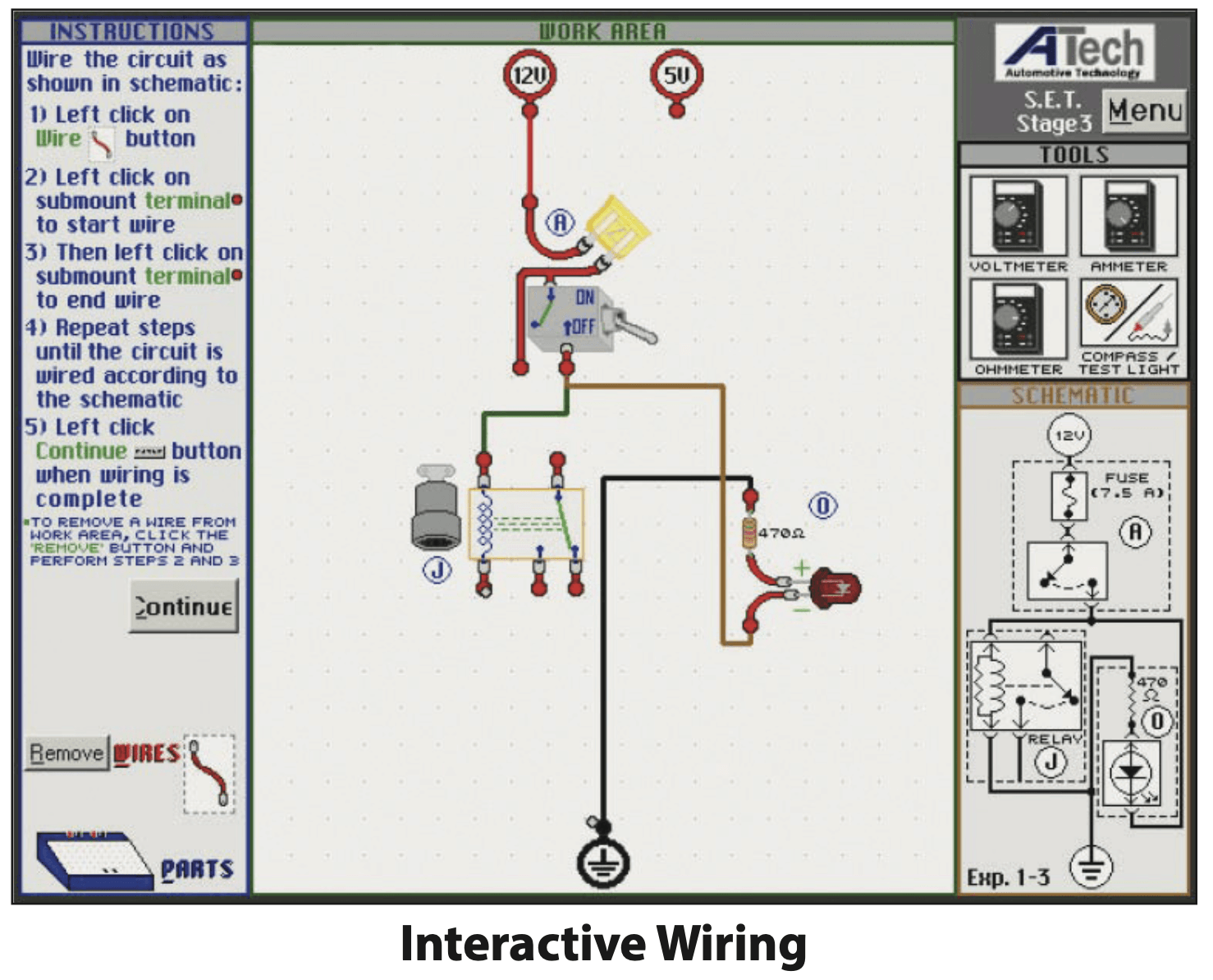

- Interactive wiring of sub-mounts

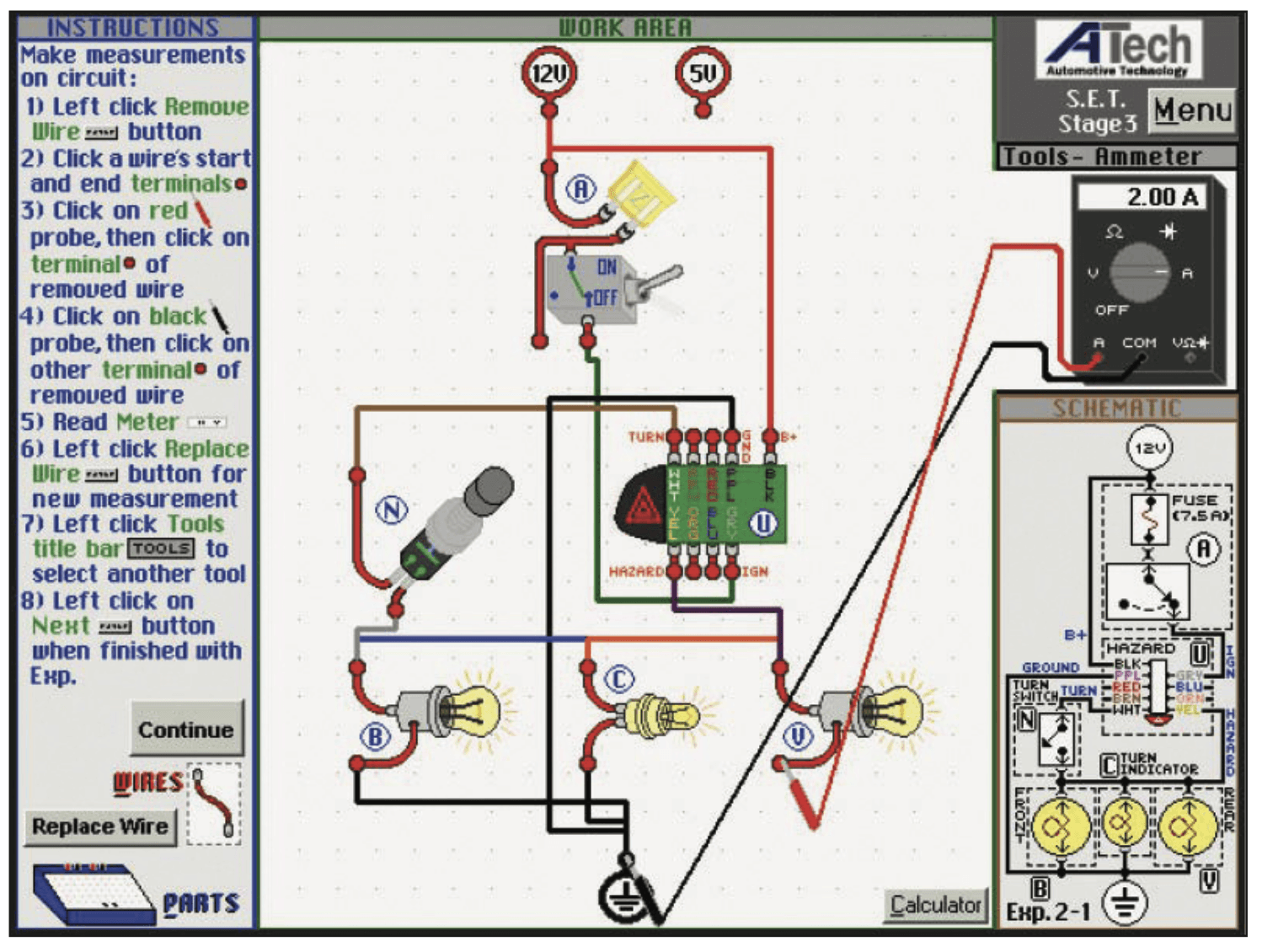

- Voltage, Resistance, and Current measurements
- Simulated component operations
