Sensors & Actuators
Model 1830

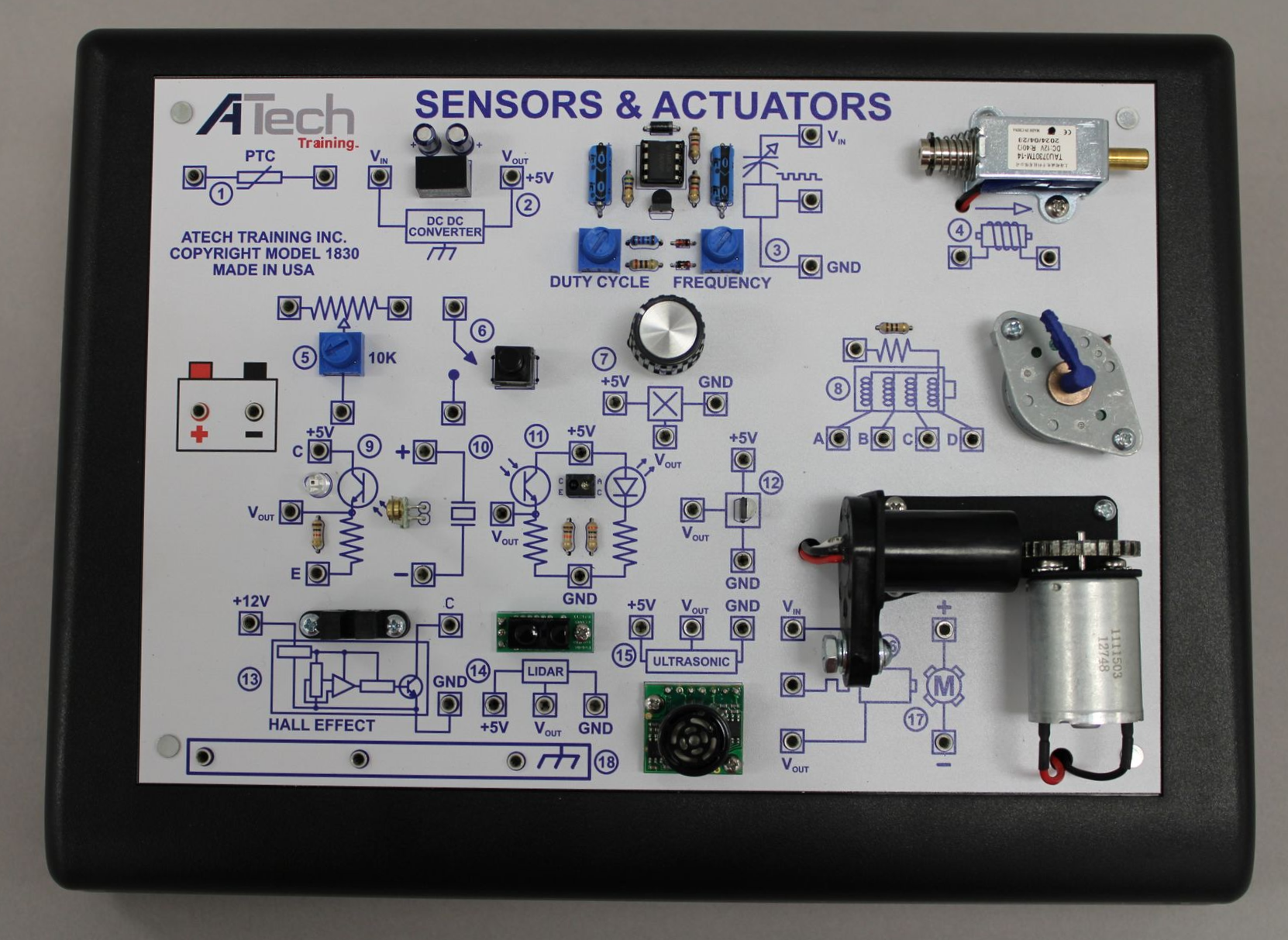

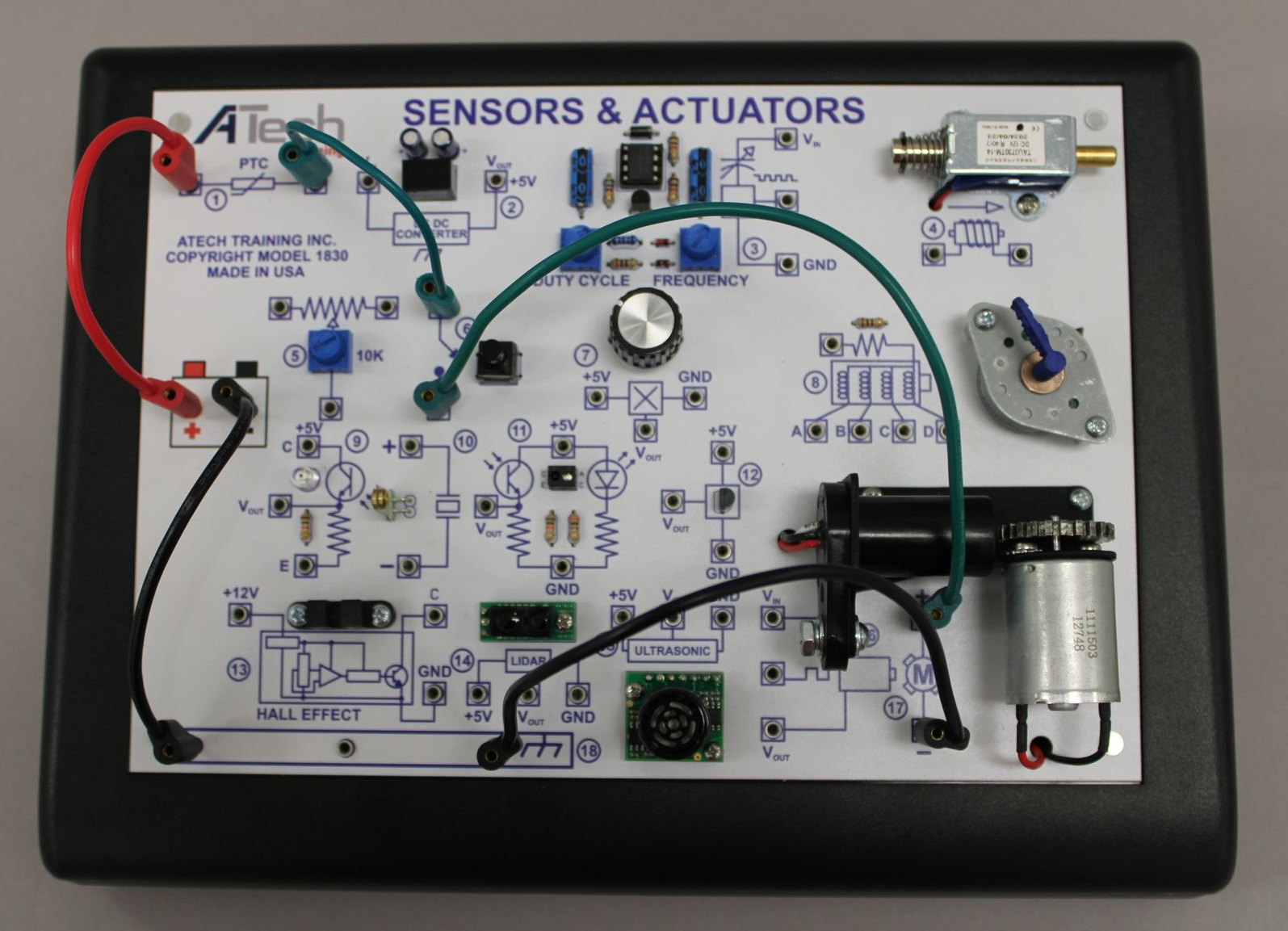

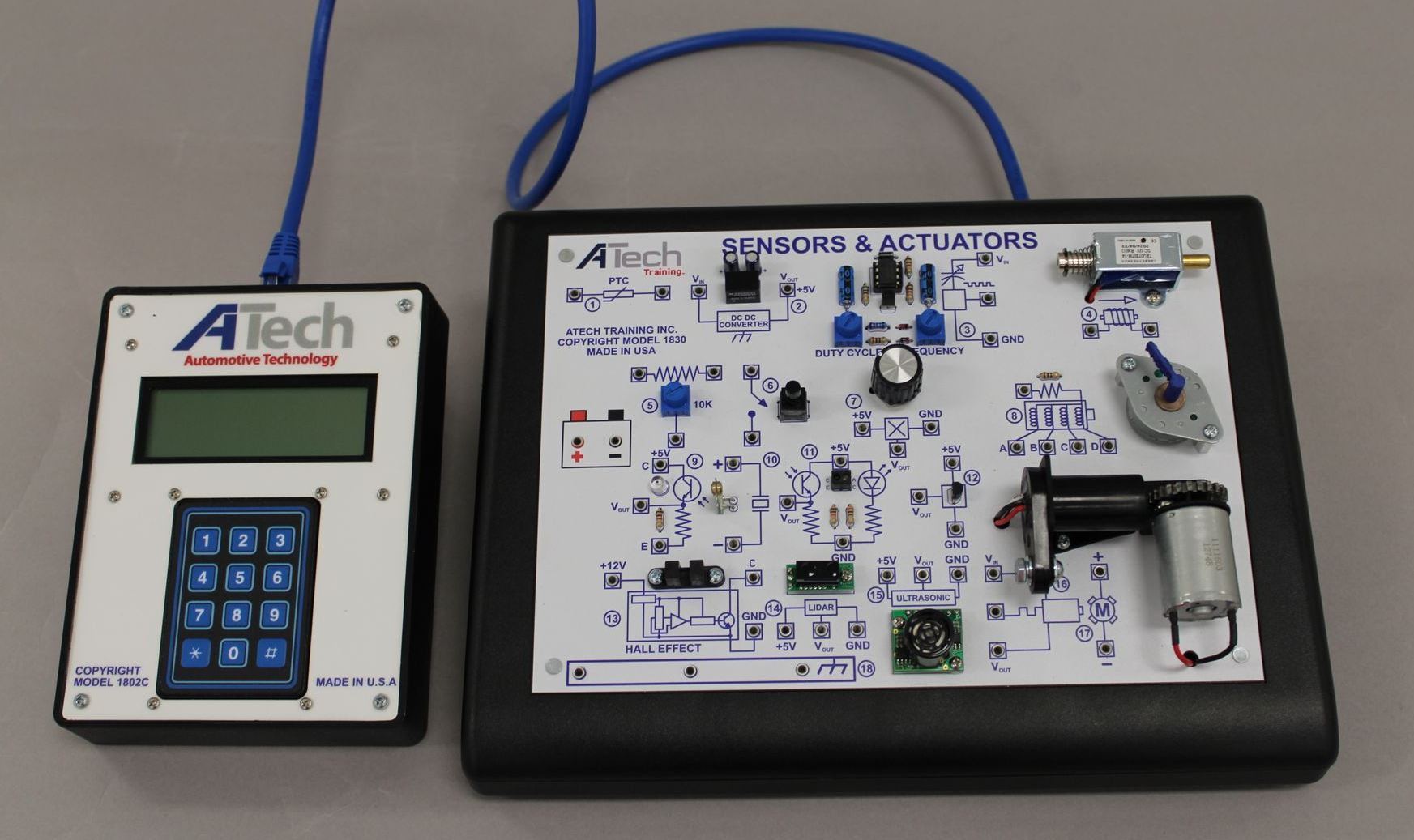

The Sensors and Actuators Trainer (model 1830) provides a hands on study of sensors and actuators with real-world troubleshooting, competency testing, and computer-based instruction (CBI). Its internal fault board introduces computer-controlled hard faults, including 17 different faults and 3 disrupted signal patterns, and it connects with the Interactive Keypad (model 1802C), or the The Sensors & Actuators CBI software (Model 1830SC).
Included is a USB drive containing the Student Manual, Instructor Guide and an on-site copy license to allow for the reproduction of instructional materials for use in the classroom.
Components:
- Solenoid
- DC Motor
- Stepper Motor
- Lidar Sensor
- Vibration Sensor
- Ultrasonic Sensor
- Temperature Sensor
- Hall Effect Speed Sensor
- Hall Effect Rotary Sensor
- On/Off Hall Effect Sensor
- Phototransistor
- 10K Potentiometer
- IR Emitter/Receiver
- 5V DC-DC Converter
- PTC Circuit Protection
- Push Button Switch
- PWM Frequency Generator
