Common Rail Diesel Cutaway

Model ART.10300

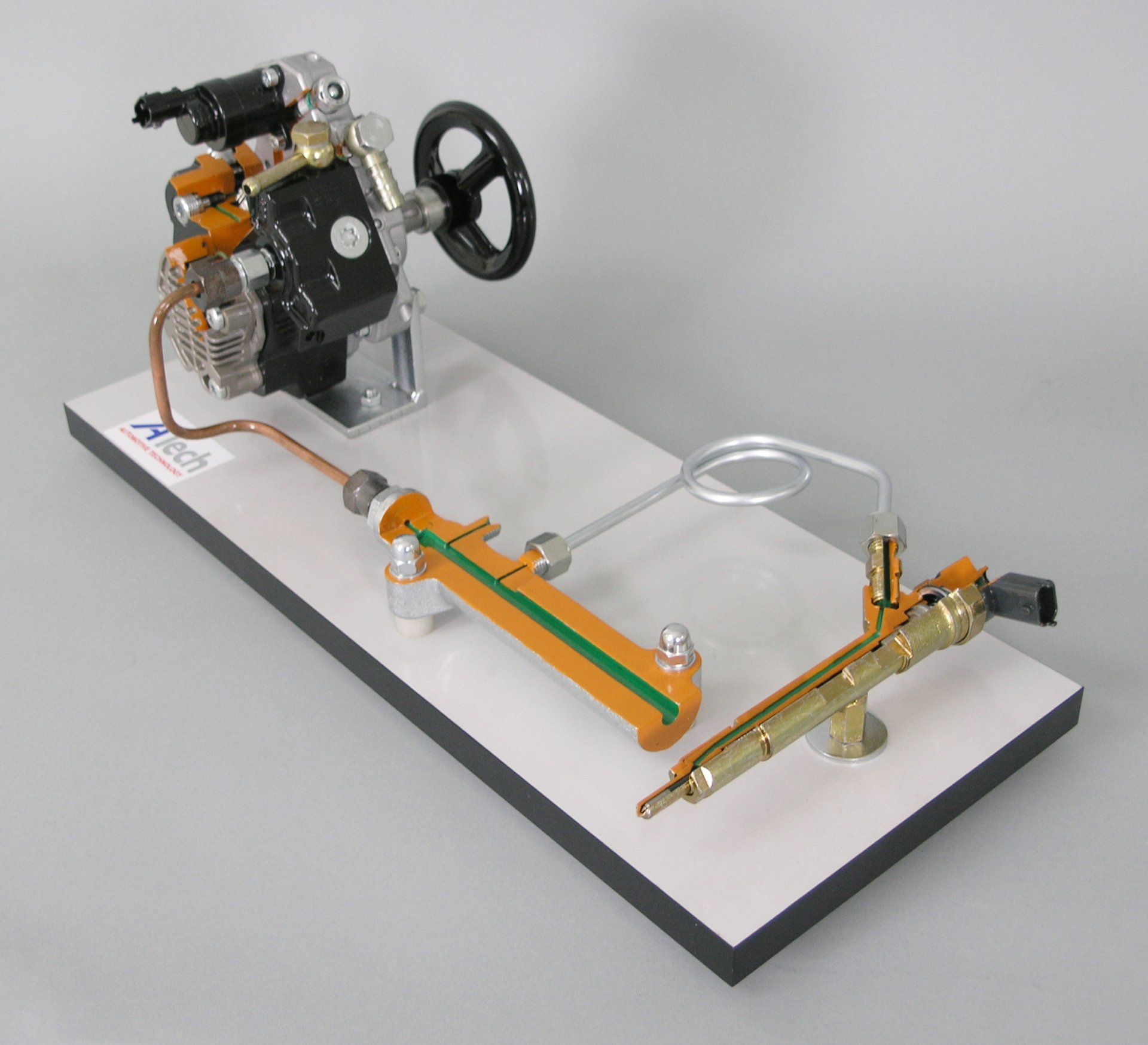

This cutaway shows an accurate cross-section of the high pressure (1300 bar) fuel system known as common rail. This circuit consists of a radial piston pressure pump, one delivery manifold, and an electro injector, all connect- ed via high pressure hoses.

Features:

  • Radial Piston Pressure Pump
  • Delivery Manifold
  • Electro Injector
  • High Pressure Hoses
  • Hand Crank
  • Mounted on a Laminate Base
