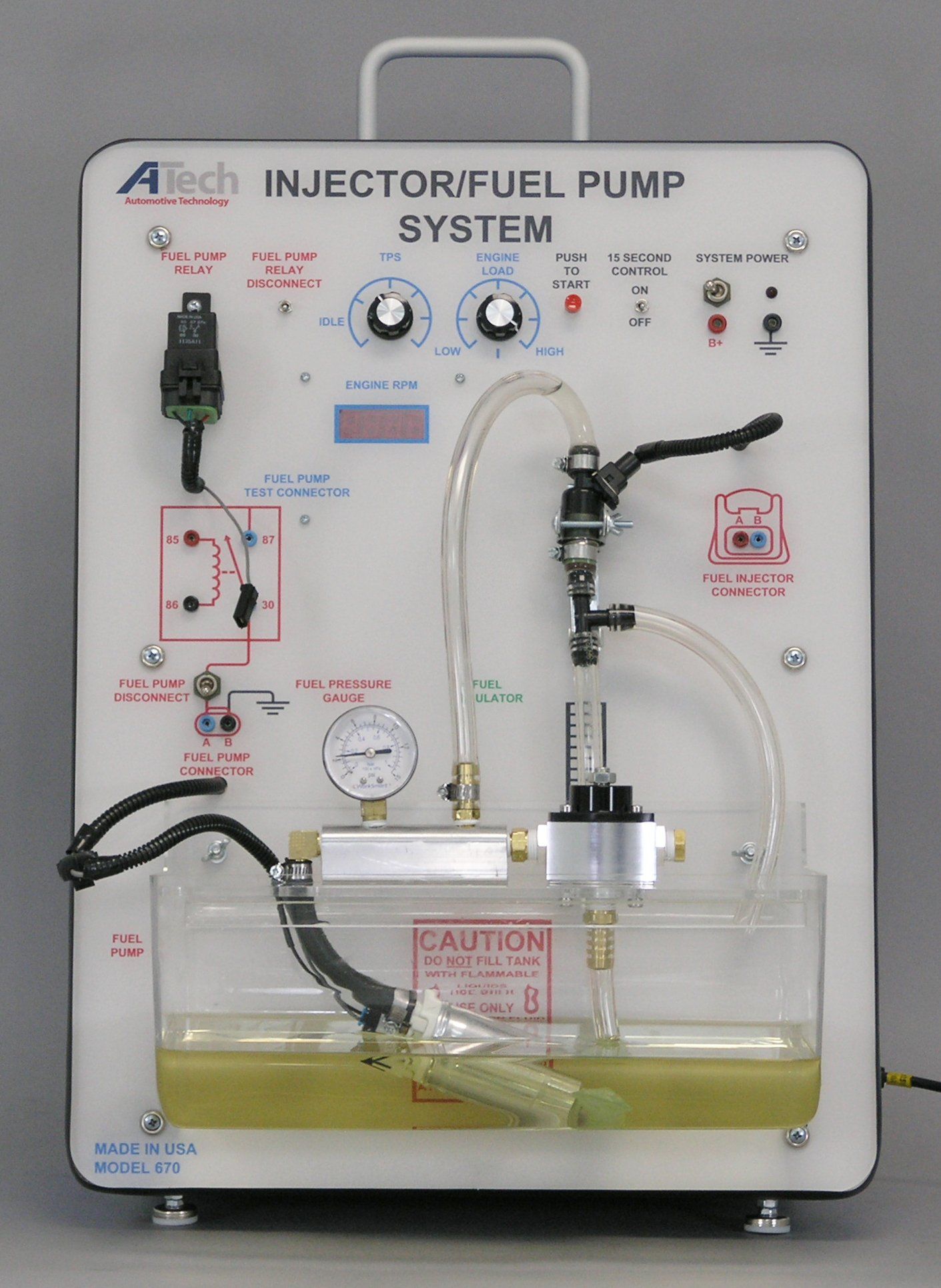

Injector/Fuel Pump System

This trainer demonstrates the Realistic Operation of both a Fuel Pump Delivery System and a Fuel Injector

• Realistic fuel pump and injector operation
• Adjustable RPM control
• Digital RPM readout
• Adjustable engine “load”
• Easy injection fuel volume measurement
• Adjustable fuel regulation pressure
• 15 sec. timer for fuel volume measurement
• incorporated into trainer
• Automatic operation in timer mode
• Fuel pump relay control circuit
• Injector terminal test points
• Fuel pump terminal test points
• RPM speeds from 200 to 5140
• Courseware included
