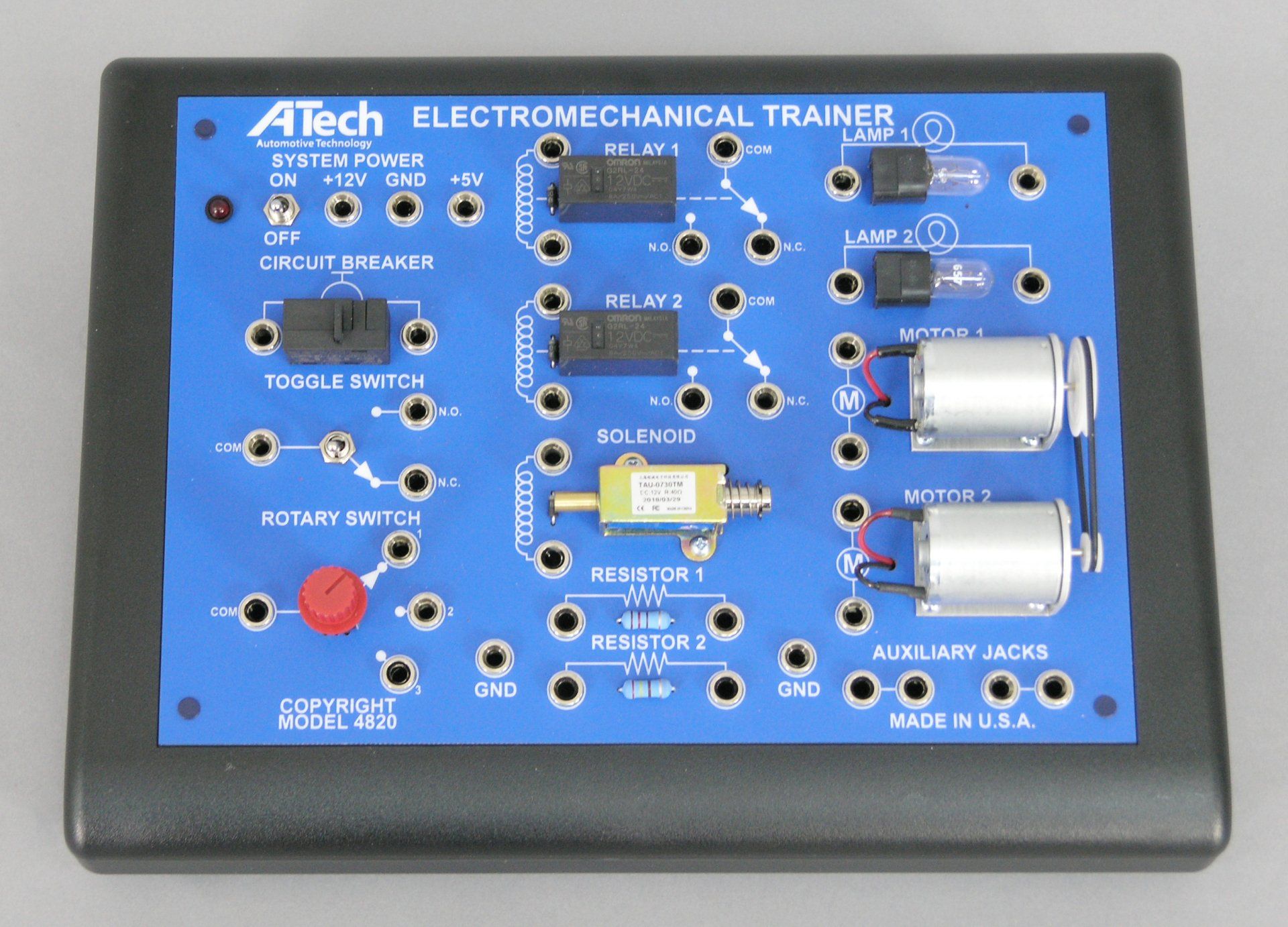

Electromechanical Trainer
Model 4820

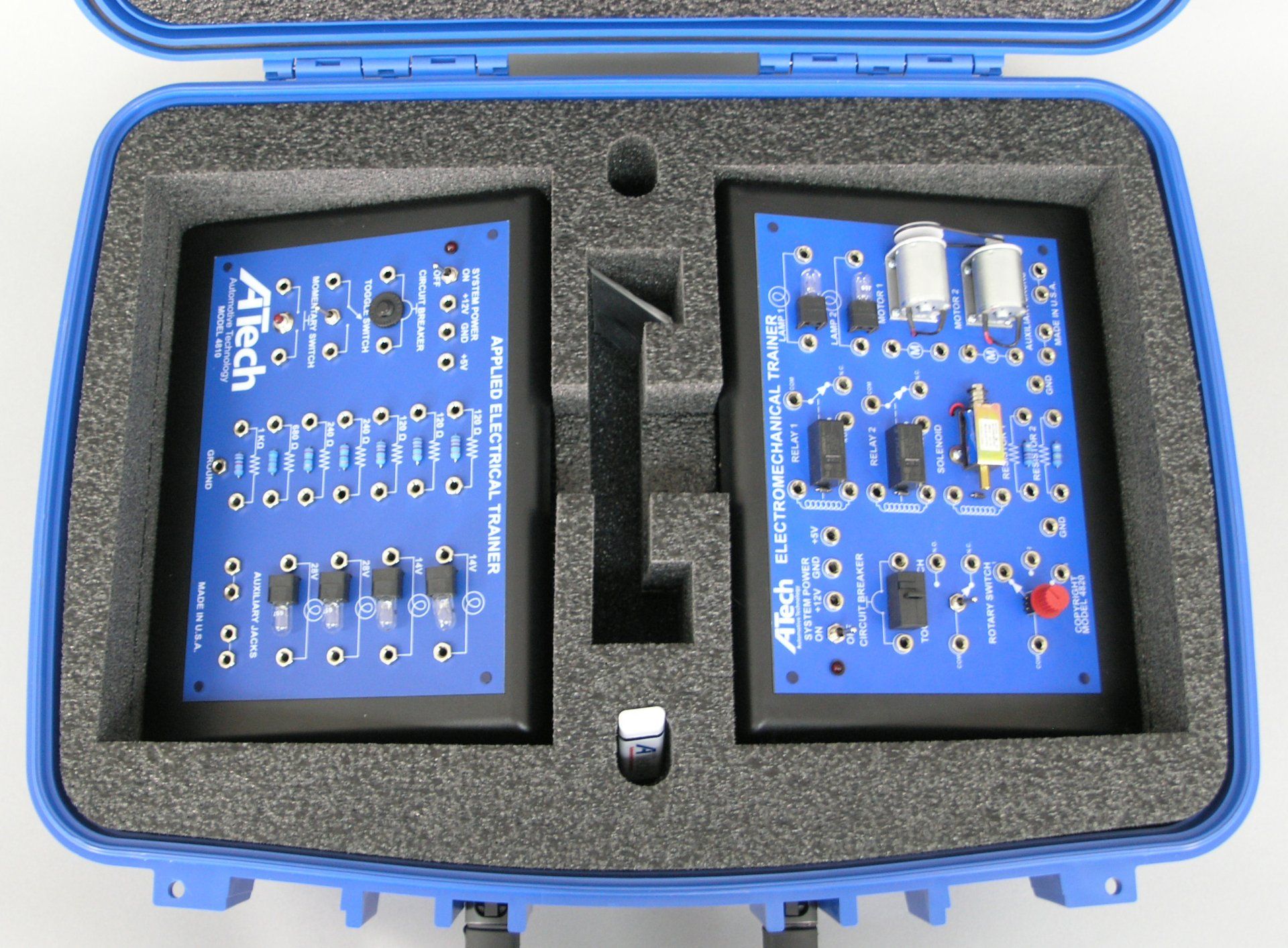

The Electromechanical Trainer presents the study of electrical and mechanical circuits. This training unit also has the flexibility to allow instructors to create their own circuits and / or tests for measurement and evaluation. Optional Sub-mounts and Storage Case available.

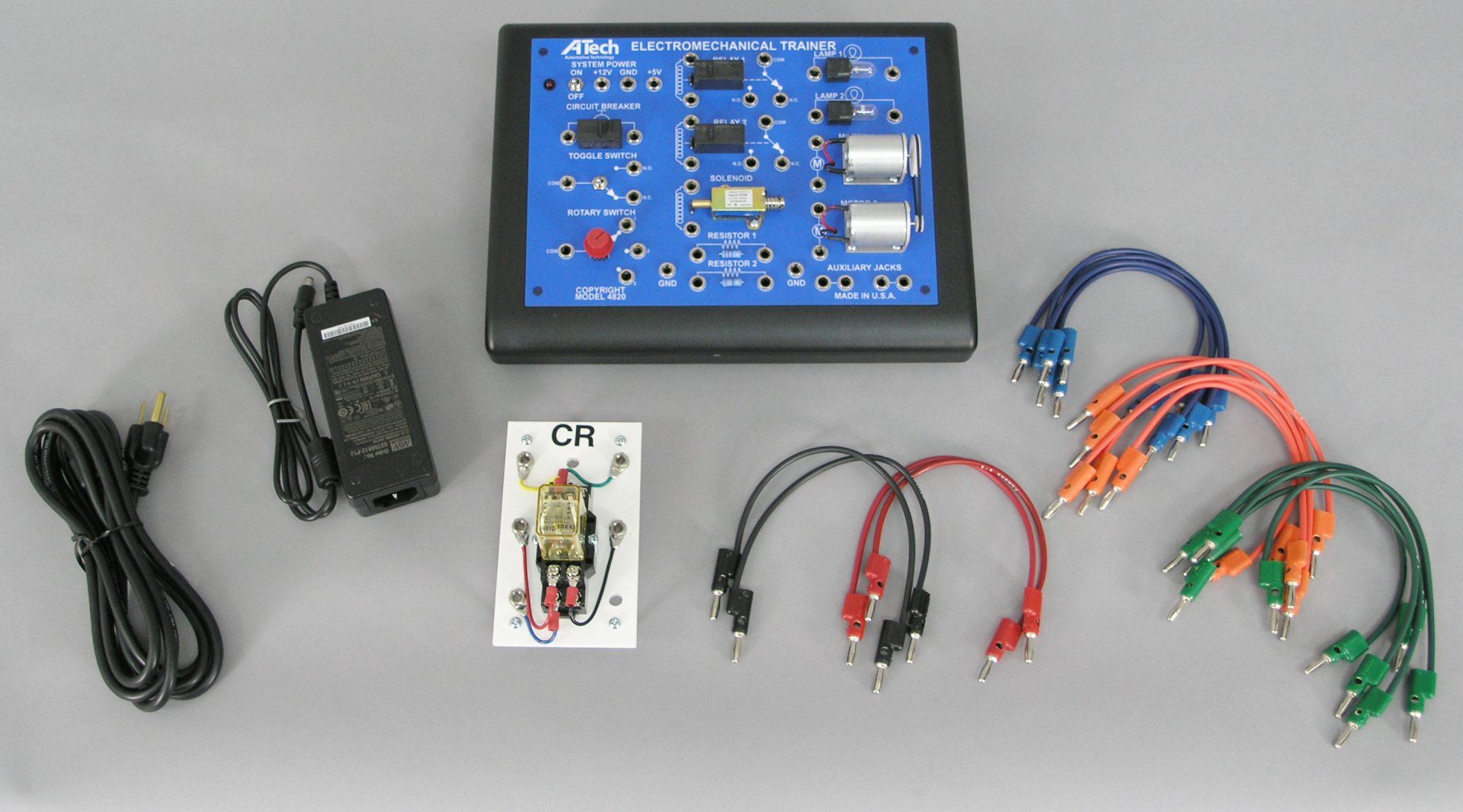

The Electromechanical Trainer contains the following components and capabilities:
- Connector wires in five colors
- Auxiliary jacks for optional submounts
- Includes Student Manual and Instructor Guide

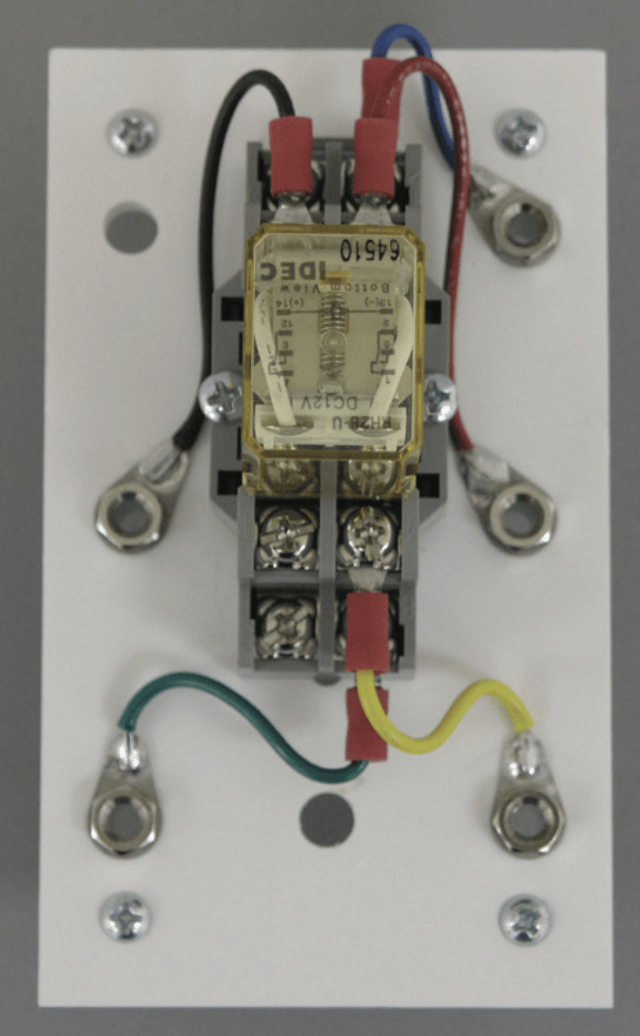

- Includes: Clear Case Relay & Socket
With this trainer, students can study the areas of:
- Relay Operation
- Magnetic Fields
- Electrical Generator
- Power
- Voltage Drop
- Diagnostic Testing
- Series Circuits
- Parallel Circuits
- Series-Parallel Circuits
- Voltage
- Current
- Resistance
