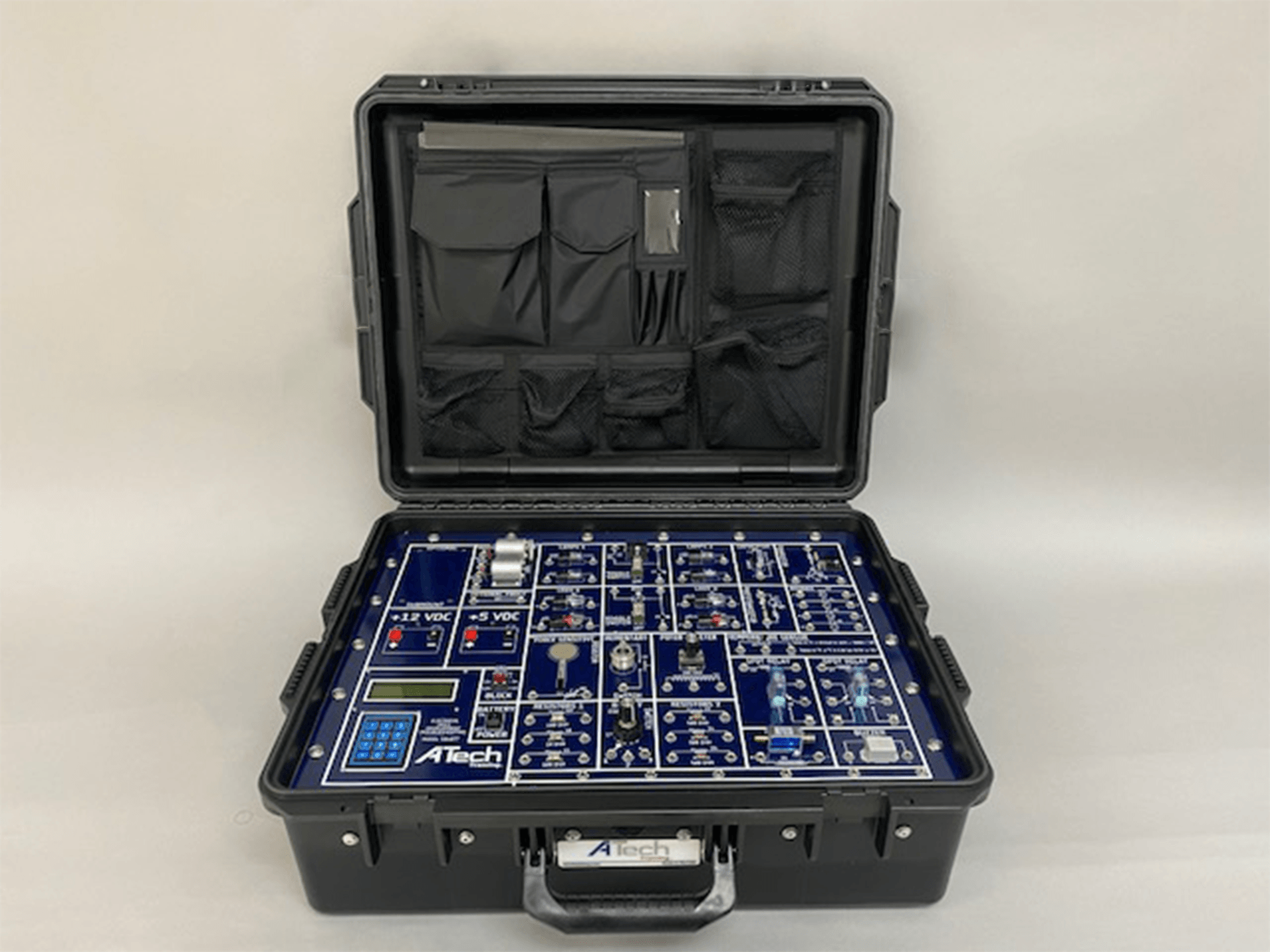

Electrical Skill Development Troubleshooting

Model 5810TT

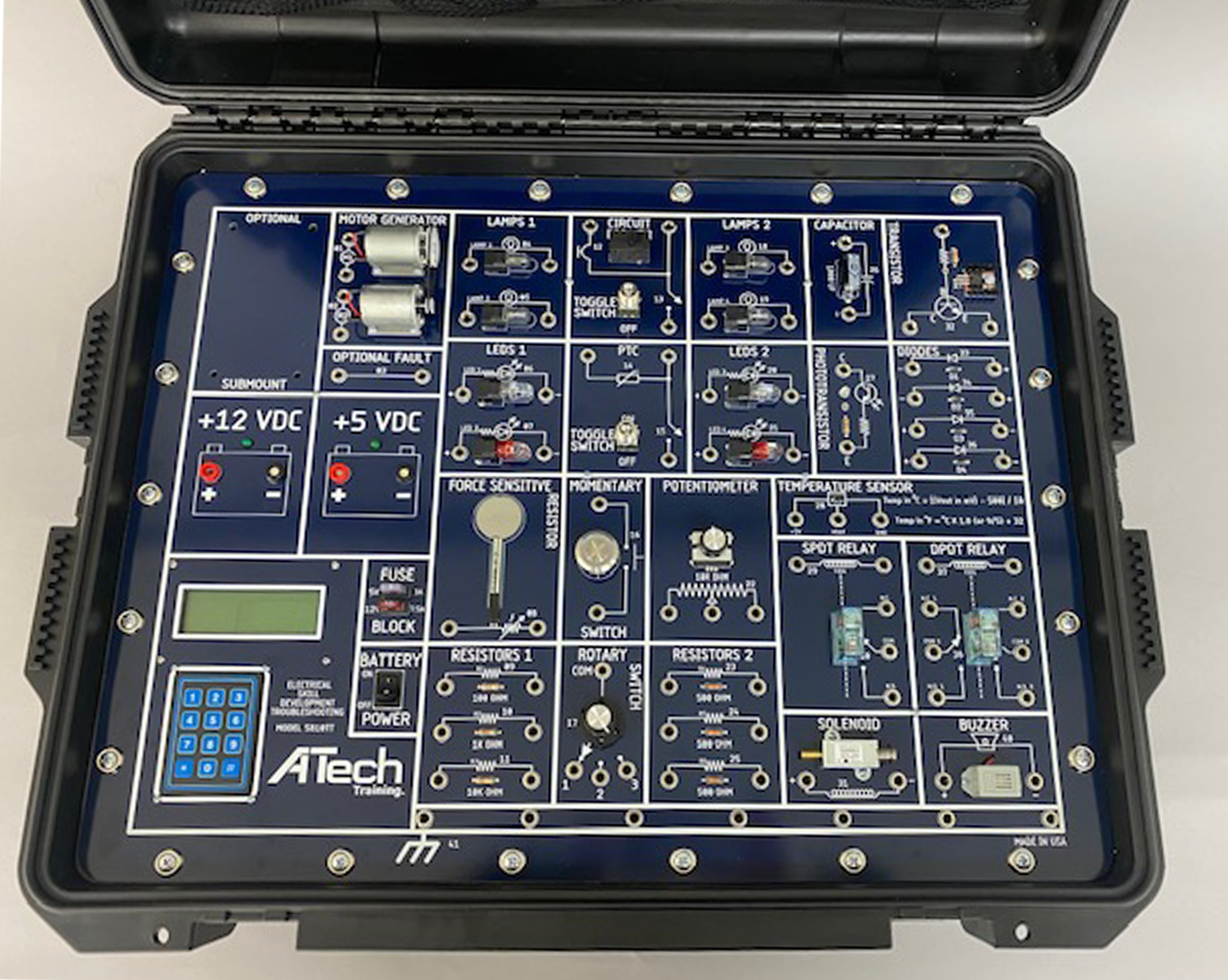

Electrical Skill Development Troubleshooting (ESDTT) provides an in-depth, hands-on study of automotive electricity and electronics. Allows for troubleshooting skill development and competency testing. The internal fault board offers different computer-controlled hard faults. Both serial and parallel circuits can be configured to perform the activities in the ESDTT courseware.

  • Slide title

    Write your caption here
    Button

Features:

  • Optional submounts can be added to create customized circuits
  • Courseware included: Student Manual and Instructor Guide
  • Classroom Management Program (CMP) compatible
  • Network display and storage of student’s performance

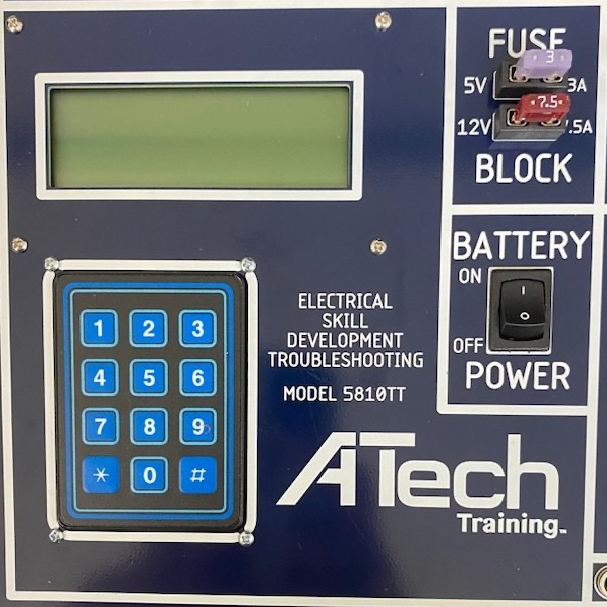

  • Fault insertion with keypad or ATech Lab System (ALS)

Specialized Circuits:

  • DC to AC voltage inversion
  • DC motor generator
  • Force sensitive resistor

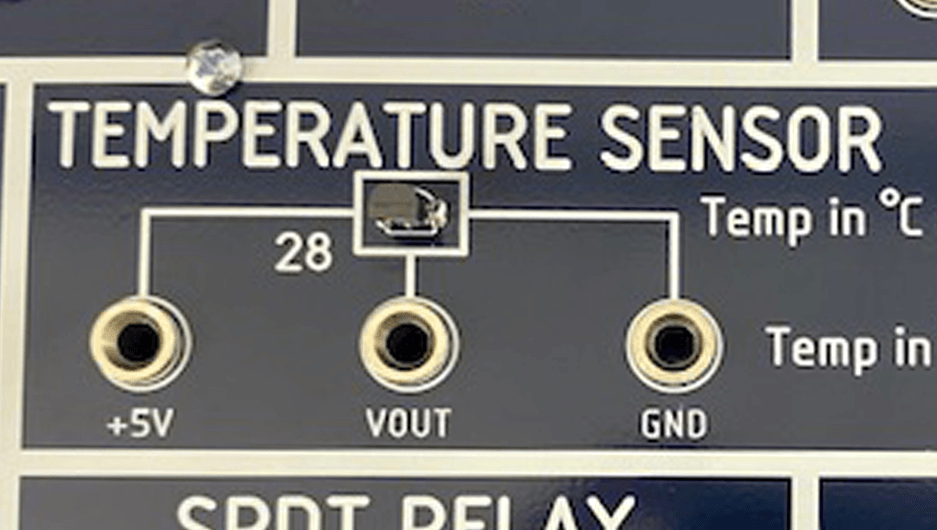

  • Precision temperature sensor

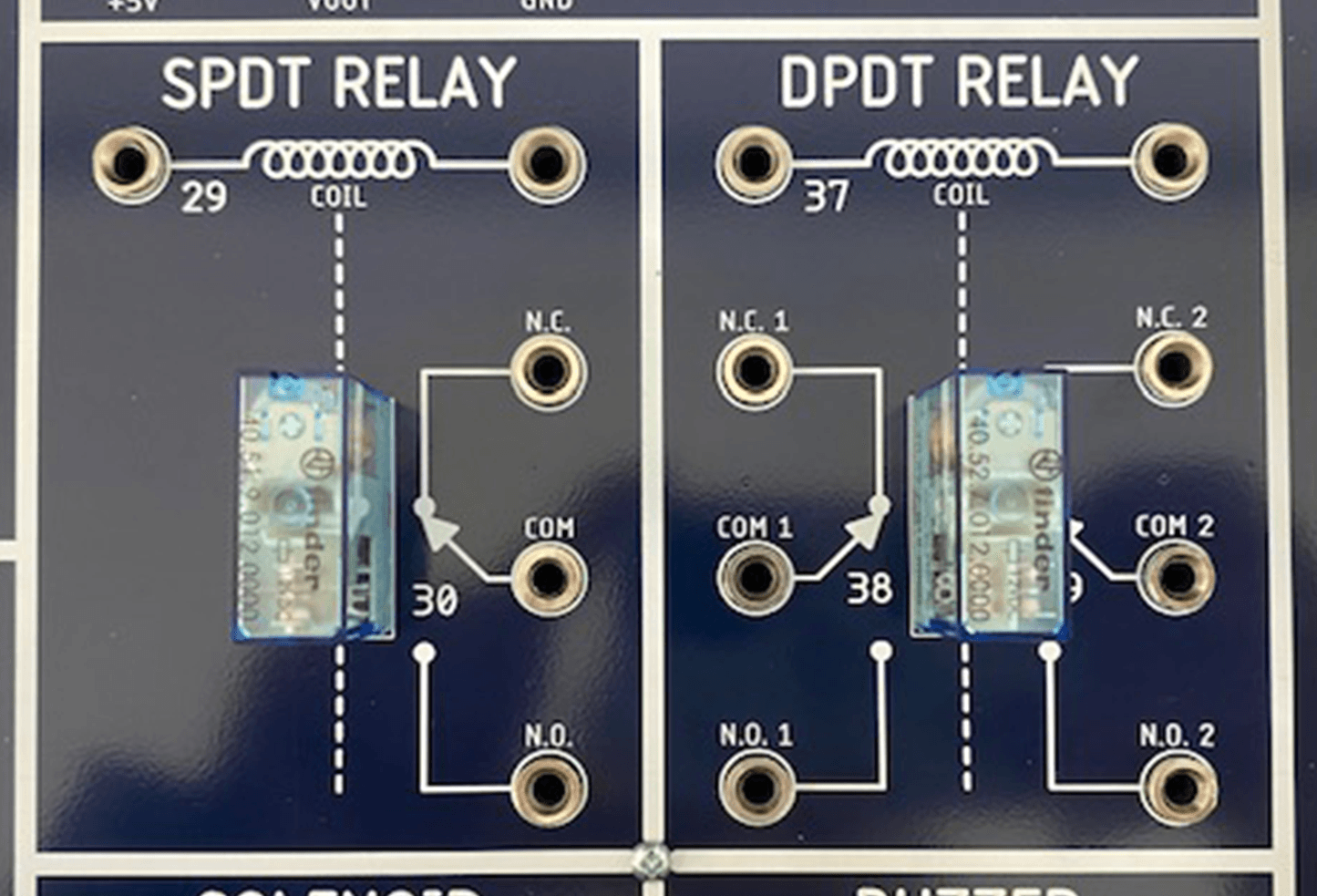

  • Clear relays (observe contact movement!)



Download PDF Details CUT Sheet
