Electrical Skill Development Trainer

Model 5810

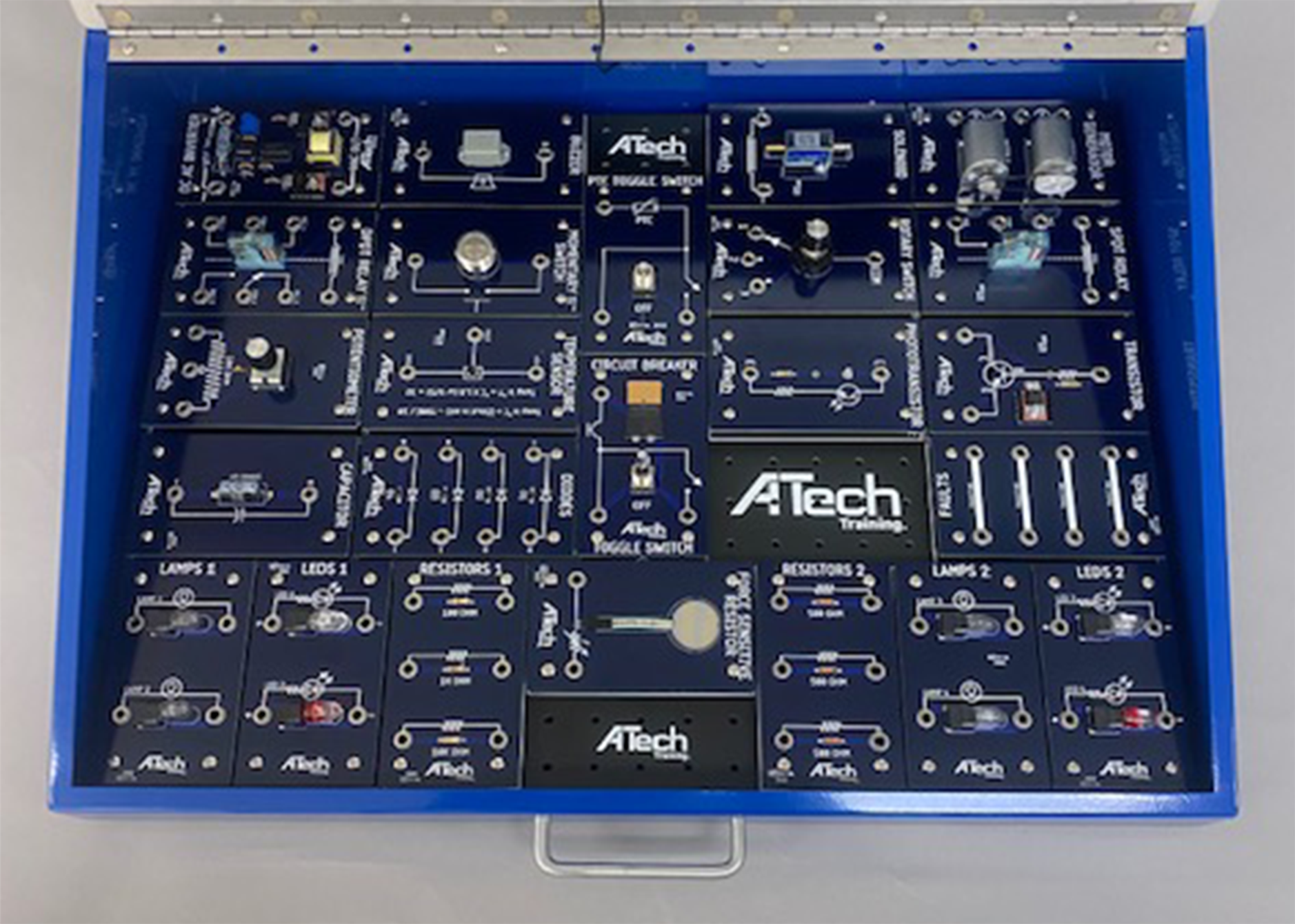

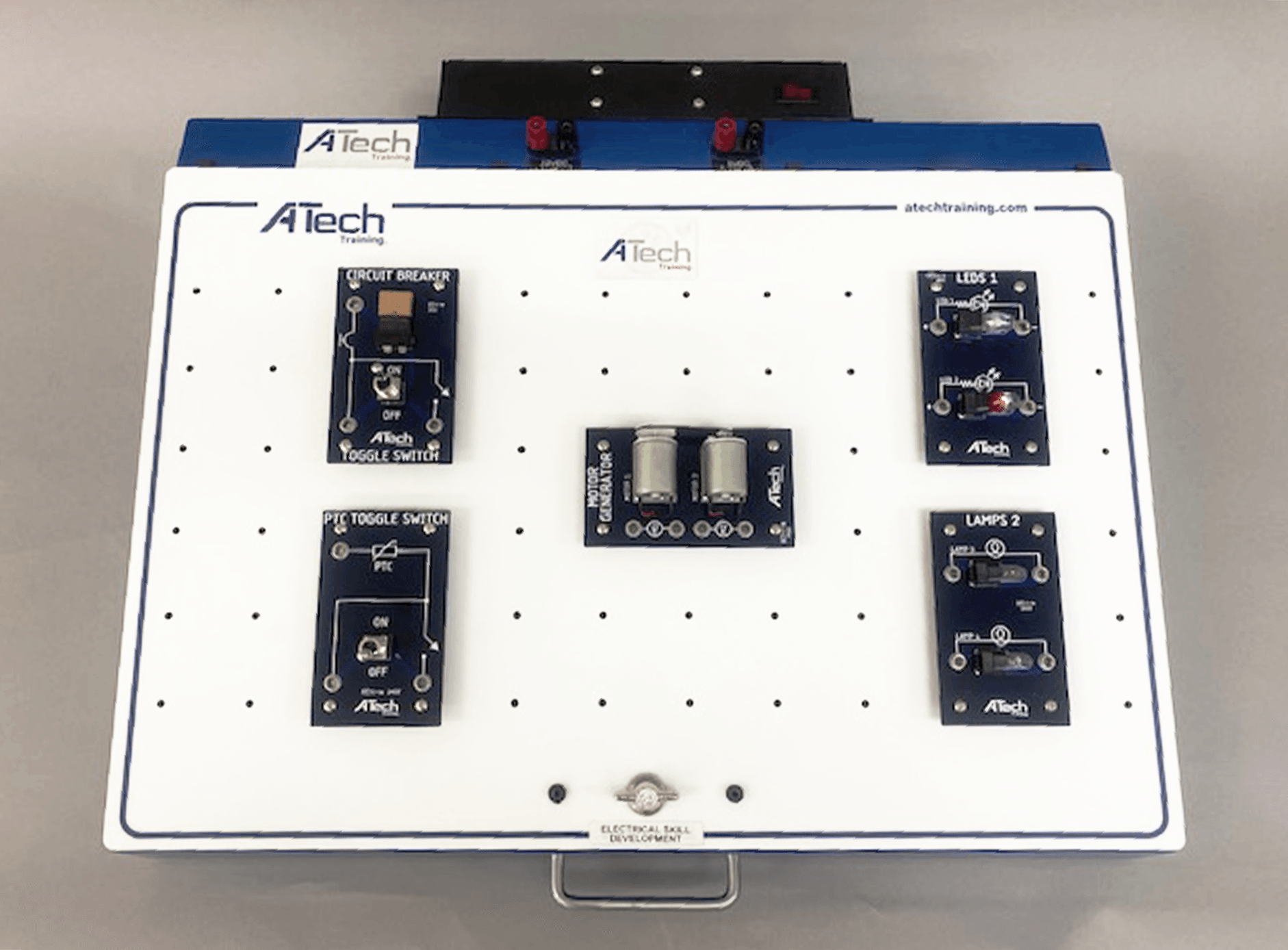

Electrical Skill Development (ESD) provides an in-depth, hands-on study of automotive electricity and electronics by introducing electrical and electronic components mounted on submounts. Both serial and parallel circuits can be configured to perform the activities in the ESD courseware.

  • Slide title

    Write your caption here
    Button

Features:

  • Optional submounts can be added to create customized circuits
  • Courseware included: Student Manual and Instructor Guide

Specialized Circuits:

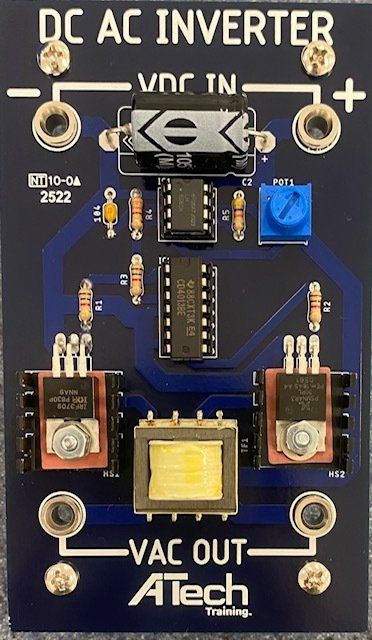

  • DC to AC voltage inversion

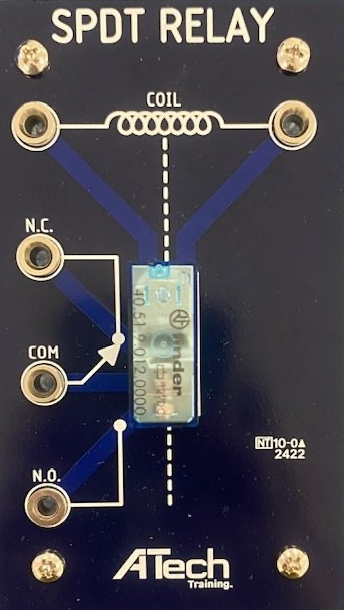

  • Clear relays (observe contact movement!)

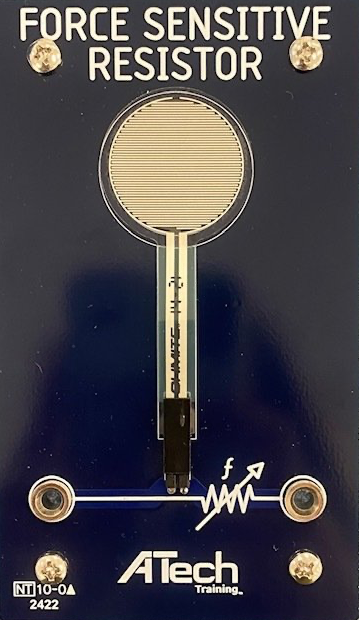

  • Force sensitive resistor
  • DC motor generator

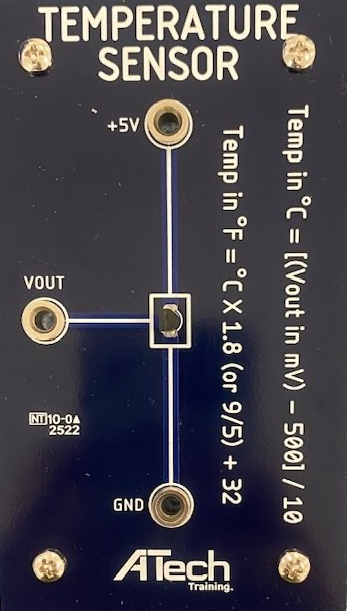

  • Precision temperature sensor
Download PDF Details Cut Sheet
