Suspension and Steering

System (Electronic)

500E

  • Slide title

    Write your caption here
    Button

ATech designed the Electronic Power Steering and Suspension System (model 500E) trainer to teach the basic principles of the suspension and steering system. This trainer allows for instructor demonstration/presentation as well as hands-on reinforcement and troubleshooting experience.

Components:

  • Lower Control Arms

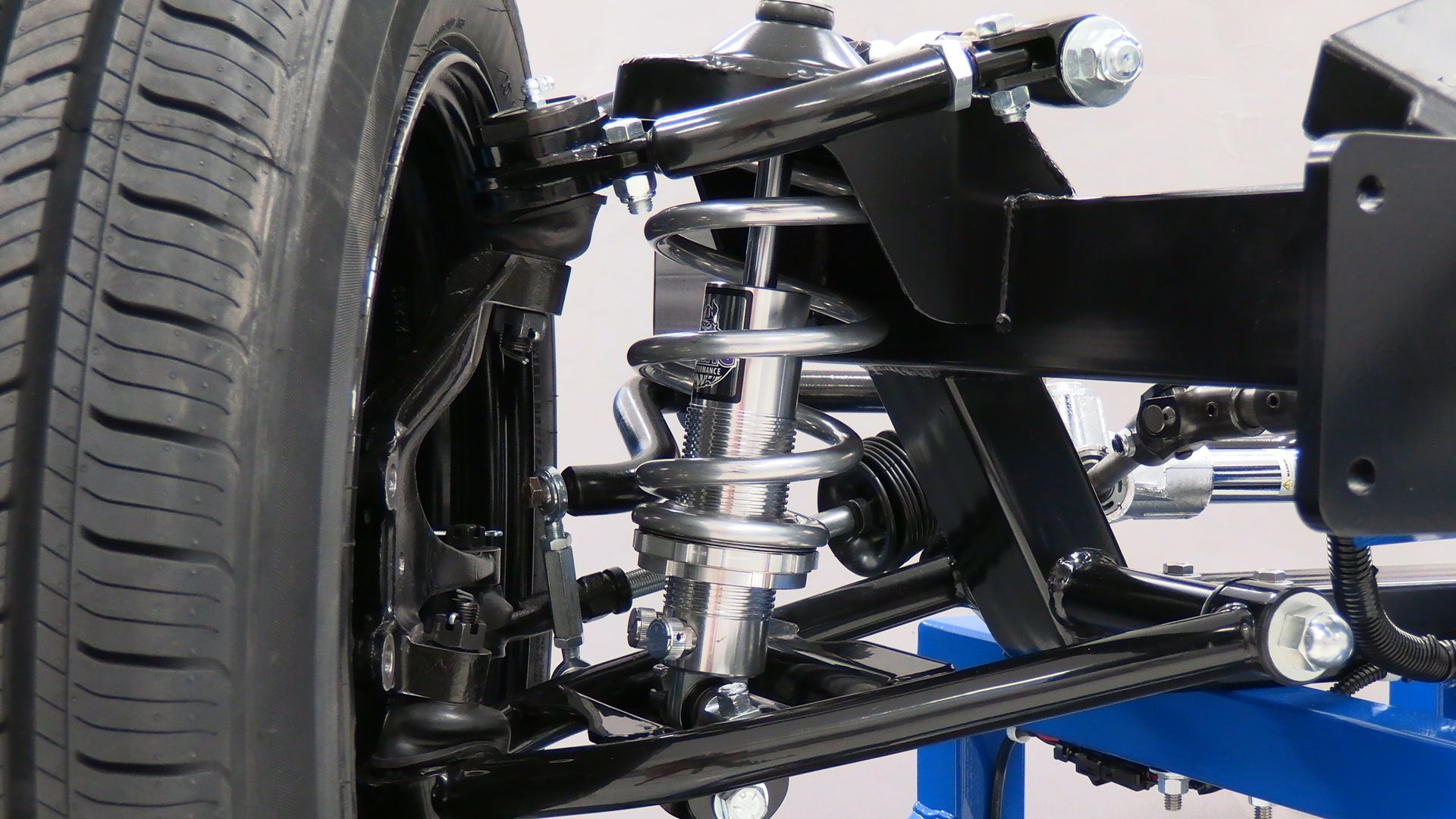

  • Adjustable Coil Over Springs
  • Adjustable Upper Control Arm Assemblies
  • Dual Adjustable Coil Over Shocks
  • Serviceable Ball Joints
  • Tie Rod Ends
  • Manual Rack and Pinion Steering Gear Assembly
  • Quick Disconnect Steering Wheel
  • Aluminum Hubs with Serviceable Tapered Roller Bearings

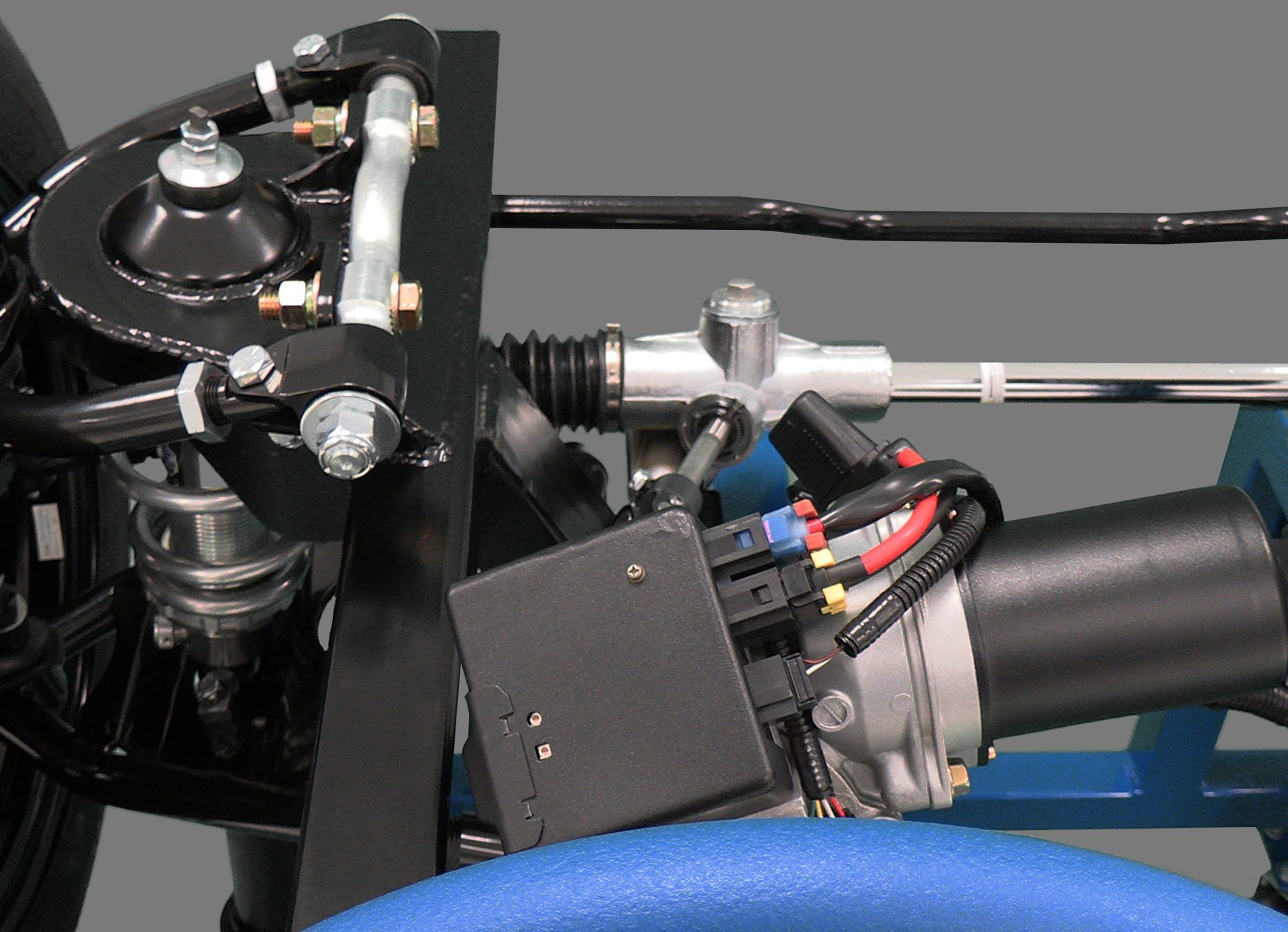

  • Electronic Power Steering Motor and ECU
  • Wheel and Tire Assemblies
  • Steering Spindles
  • Cross Member
  • Sway Bar

Features:

  • Demonstrates front tire alignment angles
  • Duplicates on-vehicle troubleshooting

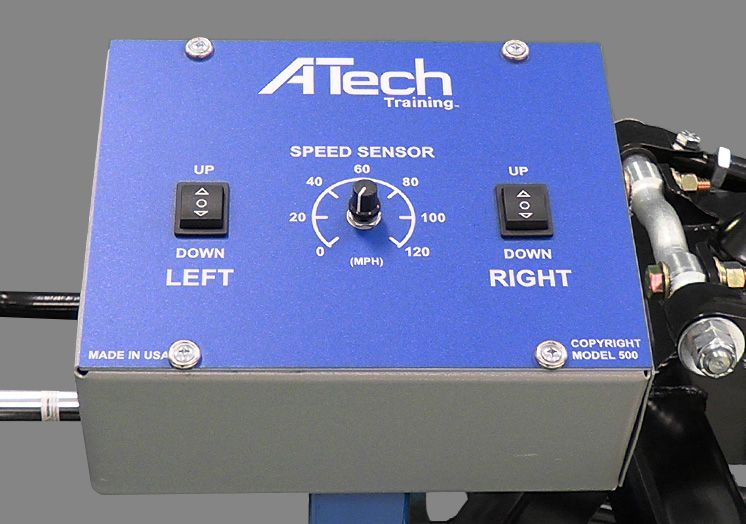

  • On-board electronic actuators simulating steering angles under different driving conditions
  • Trainer is 32” X 66” X 44” allowing it to fit through a standard door frame
  • Courseware included: Student Manual, Instructor Guide, Service Information
